Product Features

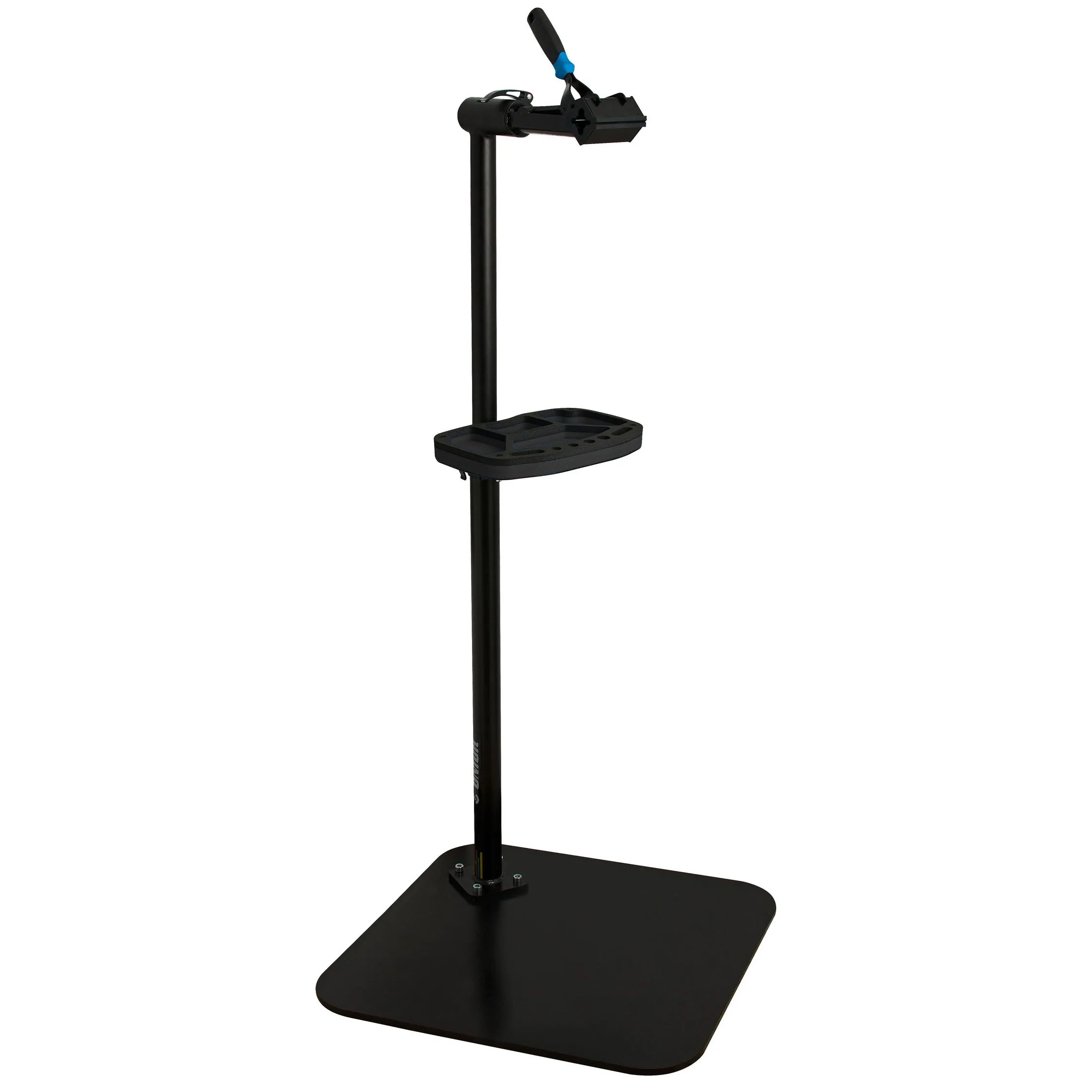

• The repair bike stand is designed for service workshops and everyday use.

• The clamp can grip tubes of any shape, with a diameter of a minimum of 22mm to a maximum of 60mm.

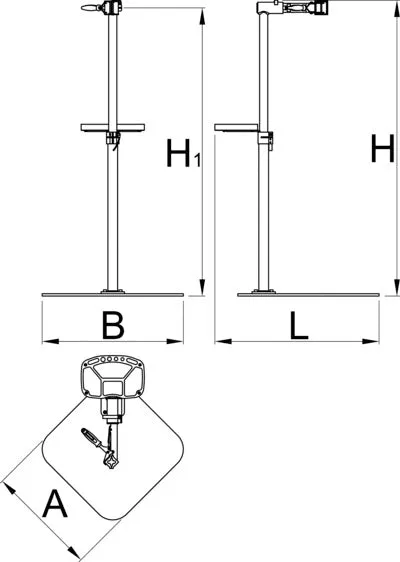

• The stand is adjustable by height between 947 and 1570 mm.

• Replaceable rubber jaw covers, item 1693.11

• Repair bike stand 1693B1 and 1693BS1 is designed for floor or ceiling mount.

* Images of products are symbolic. All dimensions are in mm, and weight in grams. All listed dimensions may vary in tolerance.

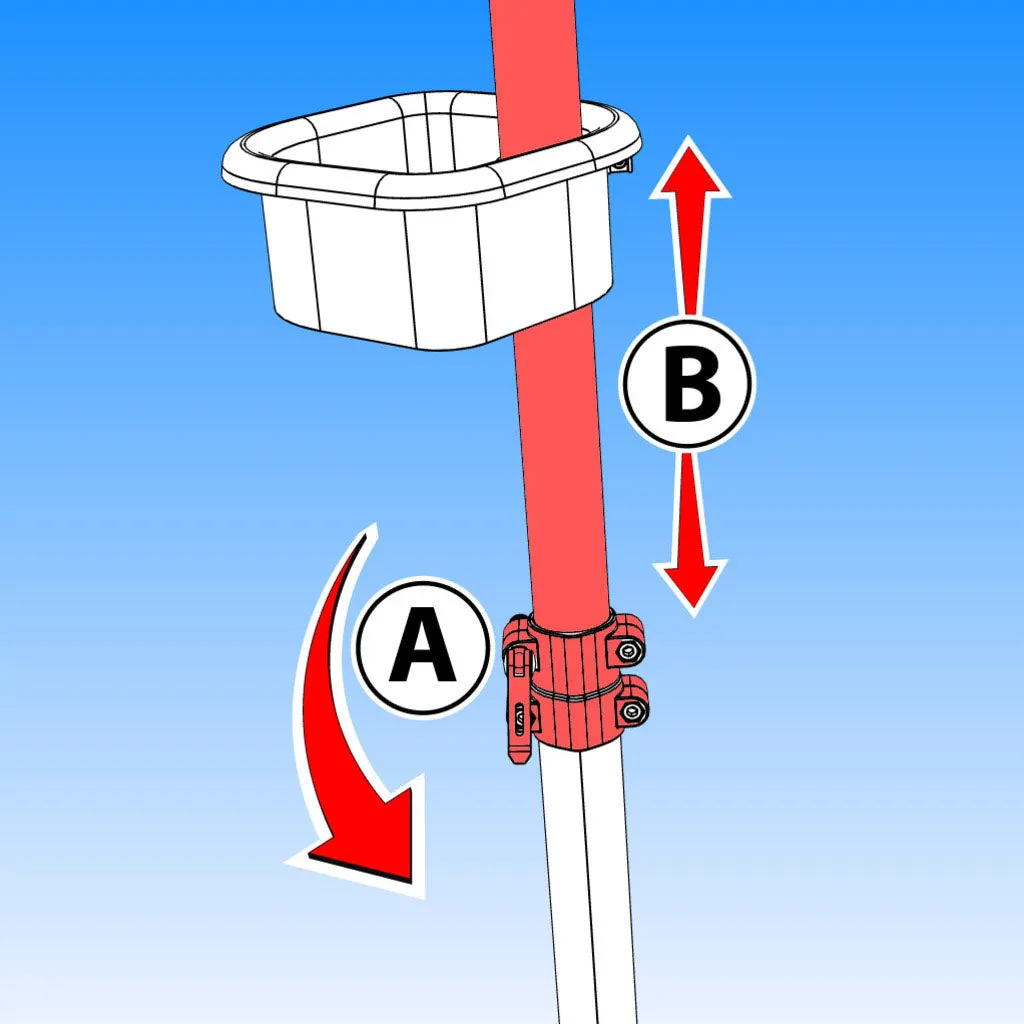

• To adjust bike stand height, release lever (A) and adjust the height of stand tube (B).

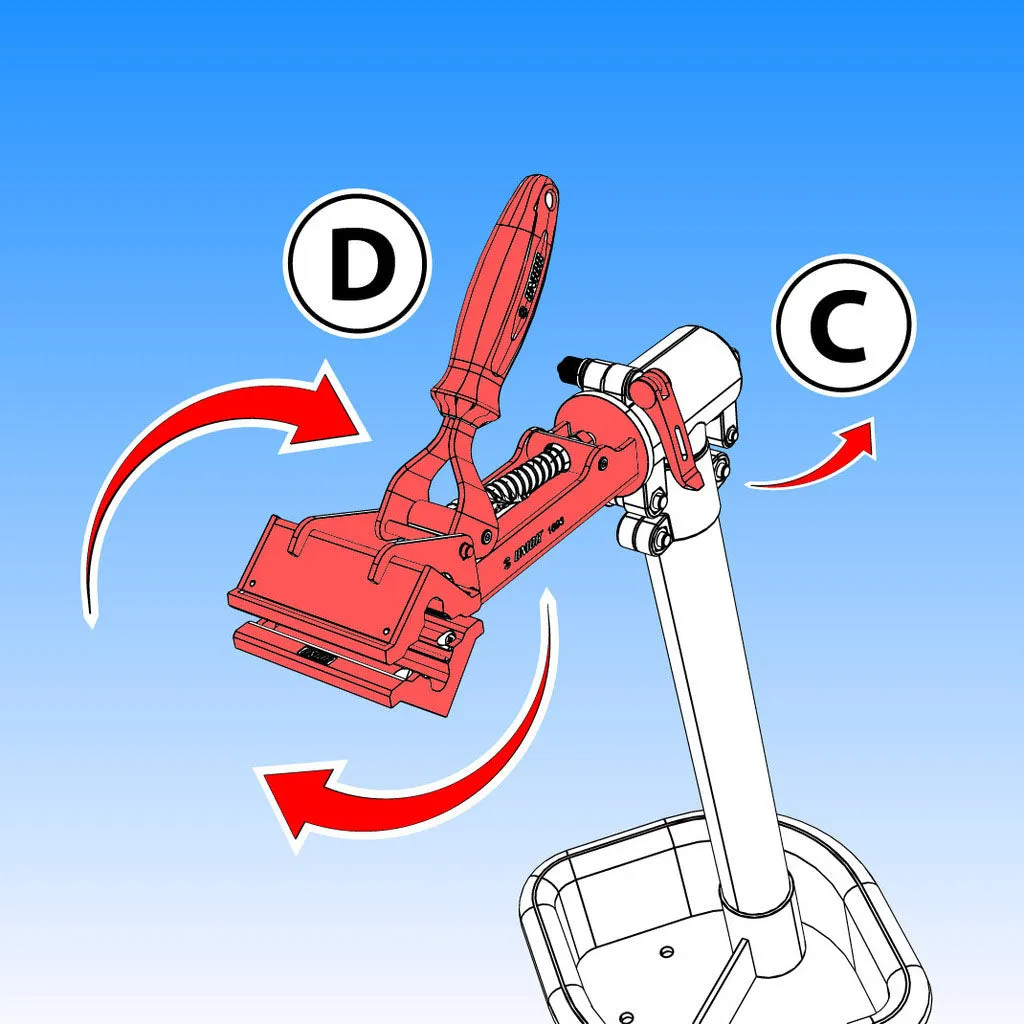

• To adjust bike stand head, release lever (C) and adjust/rotate the stand head (D).

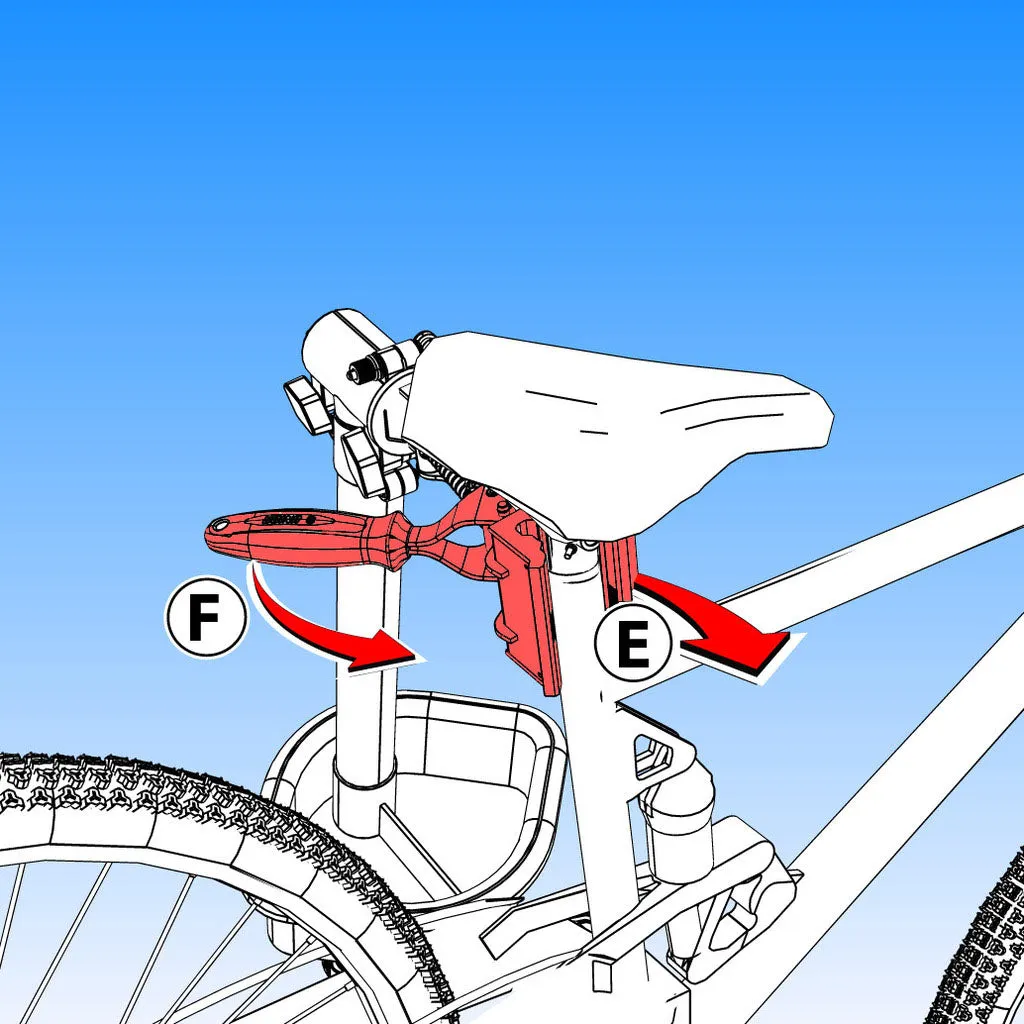

• Adjust opened jaws (E) to the tube of bike. Turn handle (F) until jaws accommodate frame whole tube. Adjust final clamping pressure, to avoid damage to bike, do not over tighten.

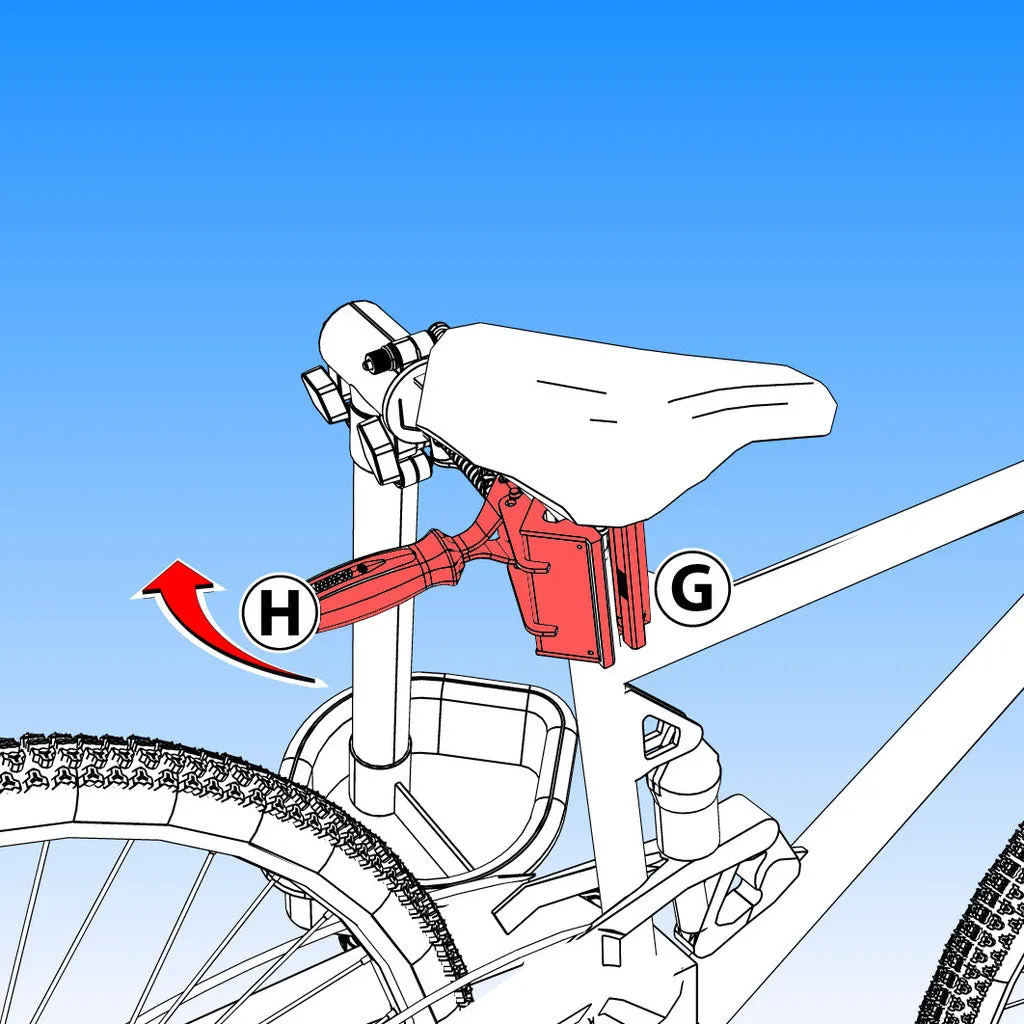

• Firmly hold bike frame (G). Flip handle (H) to quickly release tube from jaws.
